Optional. Specify the WHERE clause of the SELECT statement for the lookup table. The input should be a valid PHP expression. If it is a string, it should be quoted.

If your lookup table has a special field (e.g. named "ALookupTableField") for filtering the records by a field (e.g. named "AField") in the current record (of the current table), you can enter:

(strval(CurrentPage()->AField->CurrentValue) <> "") ? "`ALookupTableField` = " . CurrentPage()->AField->CurrentValue : ""

Notes:

1. Make sure your expression returns a valid string. If some variables in the expression has empty values, the expression will return an incomplete WHERE clause leading to no records returned from the lookup table. So you should always check if the variables has non empty values first. If empty, return an empty string (i.e. no filter) as in above example.


2. If the field in the WHERE clause is of string type, remember to single-quote it. For example, if ALookupTableField in above example is of VARCHAR type, you need to quote the value by single quotes, e.g.

   a. if the value is fixed,

   "`ALookupTableField` = 'SomeValue'"

   b. if the value needs to be escaped,

   (strval(CurrentPage()->AField->CurrentValue) <> "") ? "`ALookupTableField` = " . ew_QuotedValue(CurrentPage()->AField->CurrentValue, EW_DATATYPE_STRING) : ""



3. This setting is used in all pages. If you want to used in some pages only, you should add your conditions, e.g. if you just want to use your filter in the Edit page,

   (CurrentPageID() == "edit") ? "`ALookupTableField` = 'SomeValue'" : ""


4. This setting is an one-liner. If your logic is complex and cannot be implemented in one line, you can write a function and enter a function call, e.g.

   MyLookupFilterFunction()

   You can also pass some variables to your function as arguments, e.g.

   MyLookupFilterFunction(CurrentPage()->AField->CurrentValue)

   Your function should return a valid WHERE clause, e.g.

   function MyLookupFilterFunction($value) {
       if (strval($value) <> "") {
           return "`ALookupTableField` = " . $value; // assume ALookupTableField is integer field
       } else {
           return "";
       }
   }

   You can place your function in Global Code section under Server Events/Client Scripts. (See Server Events and Client Scripts.)


Optional. For use with dynamic selection lists. Specify the parent field (in the current table) for the current selection list.

When the parent selection list is changed, the available options in current selection list will be changed accordingly. Each field can have up to 4 parent fields.

Optional. For use with dynamic selection lists. Specify the filter field (in the lookup table) for filtering.

When the parent selection list changes, only options (records from the lookup table) with Filter field value matching the selected value(s) of its corresponding Parent field will be shown.

Optional. For use with dynamic selection lists. The 2nd pair of parent field and filter field.

If setup, the filtering of lookup table records will be based on 2 fields.

For example, if you have set up Parent/Filter field #1 and Parent/Filter field #2, and both Parent field #1 and Parent field #2 have selected value, the records will be filtered by:

(Filter field #1 value = Parent field #1 selected value) AND (Filter field #2 value = Parent field #2 selected value)

Optional. If enabled, the user will be allowed to add an option to the selection list.

Optional. If enabled, the script fills the target fields for you automatically.

For example, when you select a product number (which is a lookup field using the product table as its lookup table), it will fill product price textbox for you.

The required conditions are:

1. The field has Lookup Table and Link field,
2. The field is setup as Radio or Select with Multiple disabled (i.e. "select-one" only),
3. Auto fill is enabled,
4. Source Fields and Target Fields are set up.

If properly set up, when the user changes the selected value of the field, the scripts will try to use other field values (specified by [Source Field]) of the selected record (from the lookup table) to fill the target fields of the current table (specified by [Target Field]) automatically.

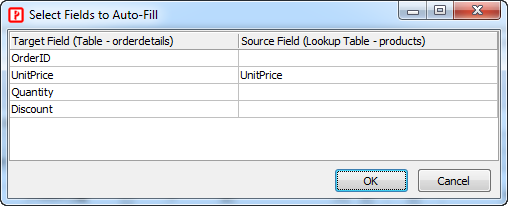

Click the [...] button and select the source fields and target fields:

In this example, when you select a product from combobox, the script know the product ID from the option value, so it can use the ID to locate the product from the same lookup table (your product table) and retrieve other field values such as the product unit price and fill the target fields.

Enable sorting and searching of the looked-up values. For use with Select (select-one) or Radio or Text Edit Tag only.

Since display values are field values in the lookup table (not in the main table), they are retrieved dynamically by code during execution of the script and normally the field cannot be sorted or searched by the display values. PHPMaker makes it possible by adding a subquery to the SQL to create a virtual field in the main table.

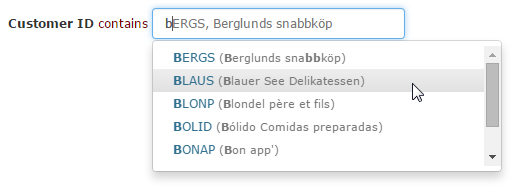

Enable text input for the field in the search forms. For use with Select (select-one) or Radio or Text Edit Tag with Allow sort/search enabled.

If Edit Tag is not Text (i.e. Select or Radio) and you have enabled Allow sort/search, you may want to search with a textbox instead of combobox or radio buttons. If so, enable this setting. Note that if Edit Tag is Text and you have enabled Allow sort/search, the input is textbox, this setting is enabled automatically even you have not checked this setting to enable it explicitly.
